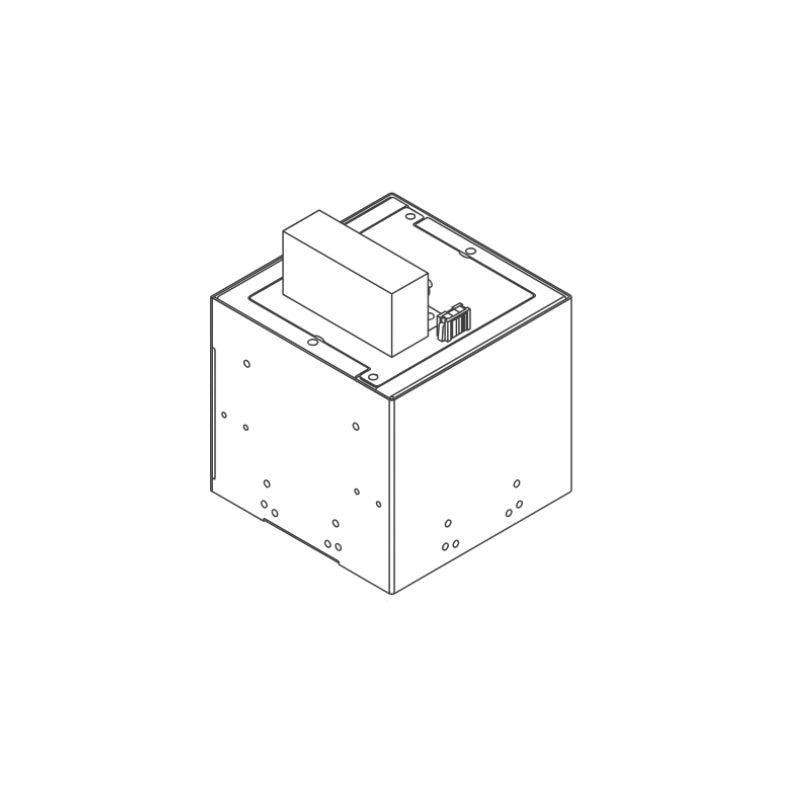

3″ Apollo IC Air-tight new construction housing for use with 3″ Apollo flanged and flangeless trims. Shallow 4-1/8″ housing includes the adjustable LED mechanism and reinforced bar hangers. A detachable roof allows for serviceability from below and above the ceiling.

Features

• Housing only. Trim sold separately.
• Wattage: 15W
• Voltage: 120V
• Color Temperature: 2700K, 3000K, 3500K, 4000K
• Lumens: 1500
• CRI: 90+
• Beam Spread: Spot (26), Narrow Flood (38), Flood (55)
• Dimming: Triac / ELV

Dimensions

• Ceiling Thickness: 1.25″ to 1.625″
• Length: 17.13″
• Width: 10.75″
• Height: 4.13″
• Ceiling Cut-Out: 3.38″ x 3.38″

Documents

• Spec Sheet
• Instruction Sheet
